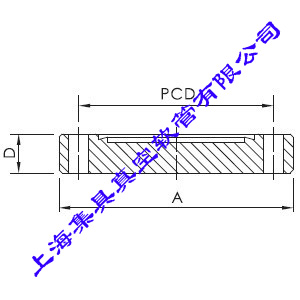

【CF盲板法兰】参数规格： CF Blank,Nonrotatable（Material=304 S.S.）
|
Model No.
|
Material
|
A
|
D
|
PCD
|
Bolted Holes
|
|
CF16B
|
304 S.S.
|
34
|
7.3
|
27
|
4.3*6
|
|
CF25B
|
304 S.S.
|
54
|
10.5
|
43
|
6.6*6
|
|
CF35B
|
304 S.S.
|
70
|
12.7
|
58.7
|
6.6*6
|
|
CF50B
|
304 S.S.
|
86
|
16
|
72.4
|
8.4*8
|
|
CF63B
|
304 S.S.
|
114
|
17.5
|
92.1
|
8.4*8
|
|
CF100B
|
304 S.S.
|
152
|
20
|
130.3
|
8.4*16
|
|
CF150B
|
304 S.S.
|
202
|
22
|
181
|
8.4*20
|
|
CF200B
|
304 S.S.
|
253
|
24.5
|
231.8
|
8.4*24
|
|
CF250B
|
304 S.S.
|
305
|
26
|
284
|
8.4*32
|
|
CF300B
|
304 S.S.
|
355
|
28.5
|
325.7
|
10.5*30
|
|
CF350B
|
304 S.S.
|
419
|
28.5
|
388.9
|
10.5*36
|
CF Blank,Nonrotatable-Tapped Bolt Holes（Material=304 S.S.）
|
Model No.
|
Material
|
A
|
D
|
PCD
|
|
|
CF16BTAP
|
304 S.S.
|
34
|
7.3
|
27
|
M4*6
|
|
CF25BTAP
|
304 S.S.
|
54
|
10.5
|
43
|
M6*6
|
|
CF35BTAP
|
304 S.S.
|
70
|
12.7
|
58.7
|
M6*6
|
|
CF50BTAP
|
304 S.S.
|
86
|
16
|
72.4
|
M8*8
|
|
CF63BTAP
|
304 S.S.
|
114
|
17.5
|
92.1
|
M8*8
|
|
CF100BTAP
|
304 S.S.
|
152
|
20
|
130.3
|
M8*16
|
|
CF150BTAP
|
304 S.S.
|
202
|
22
|
181
|
M8*20
|
|
CF200BTAP
|
304 S.S.
|
253
|
24.5
|
231.8
|
M8*24
|
|
CF250BTAP
|
304 S.S.
|
305
|
26
|
284
|
M8*32
|
|
CF300BTAP
|
304 S.S.
|
355
|
28.5
|
325.7
|
M10*30
|
|
CF350BTAP
|
304 S.S.
|
419
|
28.5
|
388.9
|
M10*36
|
|
