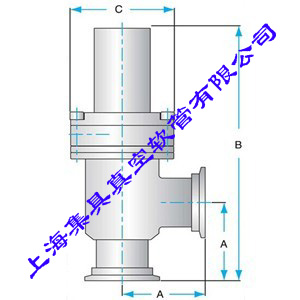

【KF单气动高真空角阀】参数规格： KF Pneumatically Actuated Angle Valve (With bellows,air to open,spring to close)
|
Model No.
|
Flange type
|
A
|
B
|
C
|
|
AVB-KF16-P
|
KF16
|
54.6
|
156.9
|
57.1
|
|
AVB-KF25-P
|
KF25
|
51.6
|
150.4
|
57.1
|
|
AVB-KF40-P
|
KF40
|
60.9
|
199.1
|
76.2
|
|
AVB-KF50-P
|
KF50
|
86.4
|
262.4
|
88.9
|
KF Pneumatically Actuated Angle Valve (Without bellows,air to open,spring to close)
|
Model No.
|
Flange type
|
A
|
B
|
C
|
|
AV-KF16-P
|
KF16
|
54.6
|
156.9
|
57.1
|
|
AV-KF25-P
|
KF25
|
51.6
|
150.4
|
57.1
|
|
AV-KF40-P
|
KF40
|
60.9
|
199.1
|
76.2
|
|
AV-KF50-P
|
KF50
|
86.4
|
262.4
|
88.9
|
【KF单气动高真空角阀】产品特点： 1.KF单气动高真空角阀和KF中心支架,KF真空法兰,KF真空卡箍,KF真空链式卡箍配套使用
2.KF单气动高真空角阀和KF真空三通,四通,五通,六通,弯头,KF真空波纹管,KF真空软管,真空腔体配合使用
3.KF单气动高真空角阀不带电磁感应,靠通气开启,弹簧关闭（air to open,spring to close）
|
