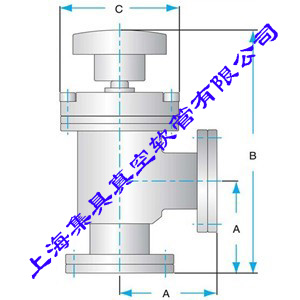

【CF手动高真空角阀】参数规格： CF Angle Valve (Manually Operated with Bellows)
|
Model No.
|
Flange type
|
A
|
B
|
C
|
|
AVB-CR16-M
|
CR16
|
63.5
|
165.1
|
57.1
|
|
AVB-CR25-M
|
CR25
|
52.1
|
139.5
|
57.1
|
|
AVB-CR35-M
|
CR35
|
62.2
|
195.8
|
76.2
|
|
AVB-CR50-M
|
CR50
|
88.4
|
256.1
|
88.9
|
|
AVB-CR63-M
|
CR63
|
85.9
|
283.2
|
99.6
|
CF Angle Valve (Manually Operated without Bellows)
|
Model No.
|
Flange type
|
A
|
B
|
C
|
|
AV-CR16-M
|
CR16
|
63.5
|
165.1
|
57.1
|
|
AV-CR25-M
|
CR25
|
52.1
|
139.5
|
57.1
|
|
AV-CR35-M
|
CR35
|
62.2
|
195.8
|
76.2
|
|
AV-CR50-M
|
CR50
|
88.4
|
256.1
|
88.9
|
|
AV-CR63-M
|
CR63
|
85.9
|
283.2
|
99.6
|
【CF手动高真空角阀】产品特点： 1.CF手动高真空角阀和CF无氧铜垫片,CF真空法兰,不锈钢螺栓配套使用
2.CF手动高真空角阀和CF真空三通,四通,五通,六通,弯头,CF真空波纹管,CF真空软管,真空腔体配合使用
3.CF手动高真空角阀手动开启和关闭,主要采用真空波纹管密封和密封圈密封两种形式
|
